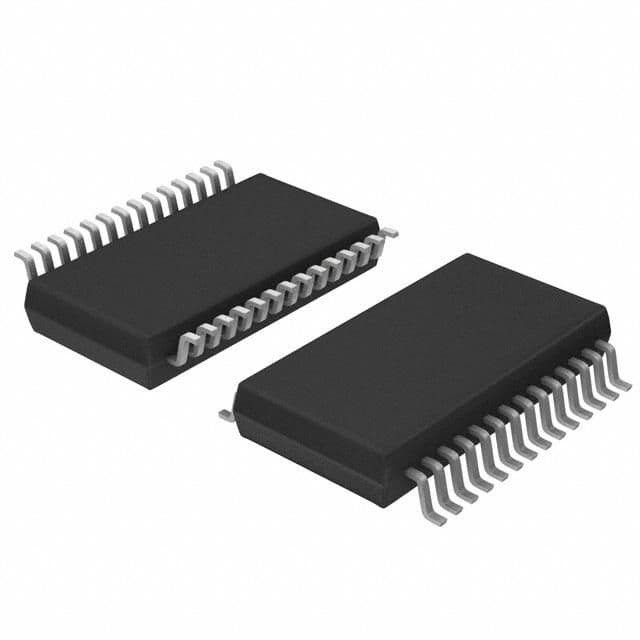

24-bit, 16-channel delta-sigma analog-to-digital converter (ADC) with a serial SPI interface. Features a 7.5 S/s sampling rate and bipolar input polarity. Operates from a single 2.7V to 5.5V supply, with a typical 5V operating voltage. Packaged in a 28-pin SSOP for surface mounting, with dimensions of 9.98mm length, 3.99mm width, and 1.5mm height. This RoHS compliant component is lead-free and suitable for operation between 0°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices LTC2418CGN#PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices LTC2418CGN#PBF technical specifications.
| Package/Case | SSOP |
| Height | 1.5mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 9.98mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 16 |
| Number of Bits | 24 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 49 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 7.5S/s |
| Supply Type | Single |
| Width | 3.99mm |
| RoHS | Compliant |
