16-bit Analog-to-Digital Converter (ADC) with 16 channels, featuring a 1.25 LSB Integral Nonlinearity (INL) and Full Scale Error. This surface-mount device operates from a 2.7V to 5.5V supply, with a typical operating voltage of 3.3V and a low supply current of 200µA. It offers SPI and serial interfaces, a sampling rate of 6.8 S/s, and a bipolar input polarity. The component is housed in a 28-pin SSOP package, measuring 9.98mm in length, 3.99mm in width, and 1.5mm in height, with an operating temperature range of -40°C to 85°C.
PackageSSOP
Current200uA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2439-1IGN#PBF technical specifications.
General
Package/Case
SSOP
Full Scale Error
1.25LSB
Height
1.5mm
Integral Nonlinearity (INL)
1.25LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
9.98mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
16
Number of Converters
1
Number of Elements
1
Operating Supply Voltage
3.3V
Package Quantity
49
Packaging
Rail/Tube
Polarity
Bipolar
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
6.8S/s
Supply Current
200uA
Supply Type
Single
Width
3.99mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2439-1IGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2439-1IGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

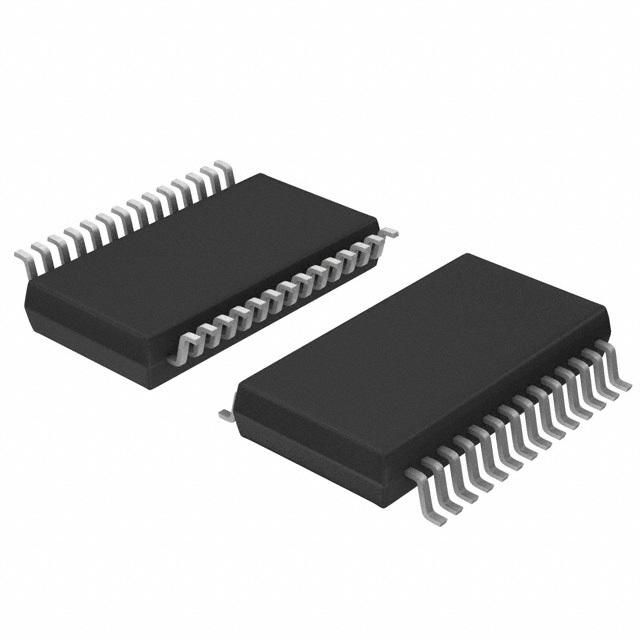

Product Images
