24-bit, 1-channel delta-sigma Analog-to-Digital Converter (ADC) with a 4kS/s sampling rate. Features 1LSB differential nonlinearity and a serial SPI interface. Operates from a single 4.5V to 5.5V supply, with a typical supply current of 8mA and 40mW power dissipation. Packaged in a 16-pin SSOP for surface mounting, with a temperature range of 0°C to 70°C.
PackageSSOP
Current8mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2440CGN#PBF technical specifications.
General
| Package/Case | SSOP |
| Differential Nonlinearity | 1LSB |
| Height | 1.5mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 4.98mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 40mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 24 |
| Number of Channels | 1 |
| Number of Converters | 2 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Dissipation | 40mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 4KS/s |
| Supply Current | 8mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2440CGN#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2440CGN#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

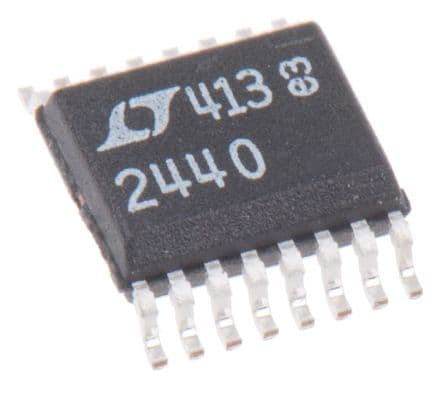

Product Images
