24-bit, 8 kS/s delta-sigma analog-to-digital converter (ADC) featuring a quad-channel input. This general-purpose IC offers a serial SPI interface and operates from a single 4.5V to 5.5V supply. Packaged in a 36-pin SSOP with dimensions of 13.1mm x 5.6mm x 2mm, it supports bipolar input polarity and is RoHS compliant.
PackageSSOP
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices LTC2442CG#PBF technical specifications.
General
Package/Case
SSOP
Converter Type
GENERAL PURPOSE
Height
2mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
13.1mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
24
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
37
Packaging
Rail/Tube
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
8KS/s
Supply Type
Single
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2442CG#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2442CG#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

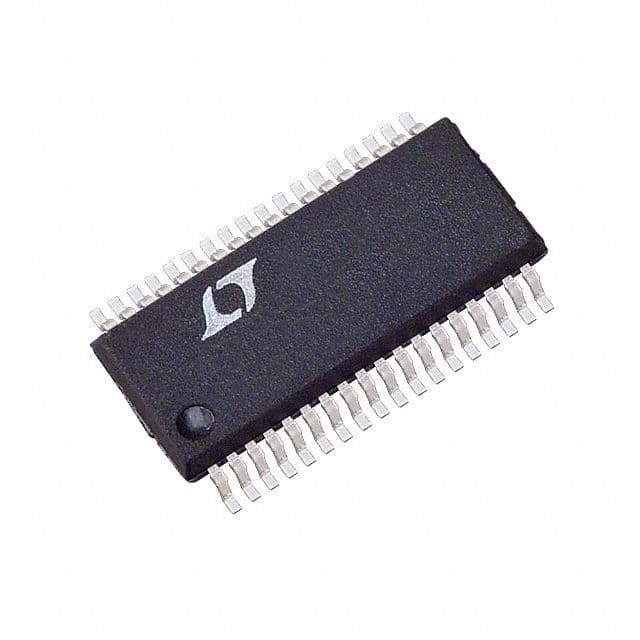

Product Images
