24-bit delta-sigma analog-to-digital converter (ADC) with a single supply voltage range of 2.7V to 5.5V. Features SPI serial interface and a sampling rate of 7.5S/s. Operates across a temperature range of -40°C to 85°C with a low supply current of 160µA. Surface mountable in a DFN package, this RoHS compliant component offers 24-bit resolution.
PackageDFN
Current160uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2492IDE#PBF technical specifications.
General
| Package/Case | DFN |
| Interface | SPI, Serial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 24 |
| Number of Converters | 1 |
| Package Quantity | 91 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 7.5S/s |
| Supply Current | 160uA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2492IDE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2492IDE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

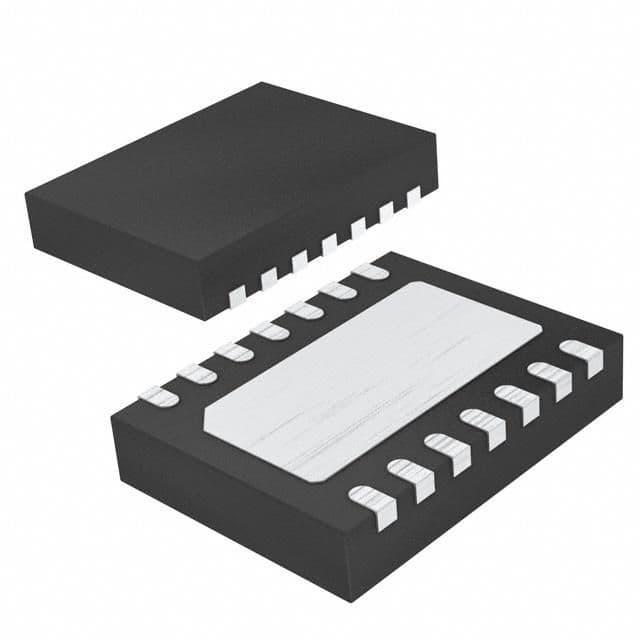

Product Images
