16-bit, single-channel voltage output digital-to-analog converter (DAC) featuring a serial SPI interface. This surface-mount component offers a 10µs settling time and a maximum operating temperature of 70°C. It operates from a single 2.5V to 5.5V supply and boasts an integral nonlinearity of 64 LSB. The DFN EP package ensures efficient integration into electronic designs.
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2601CDD-1#PBF technical specifications.
General
| Package/Case | DFN EP |
| Integral Nonlinearity (INL) | 64LSB |
| Interface | Serial, SPI, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Output Type | Voltage |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Settling Time | 10us |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2601CDD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2601CDD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

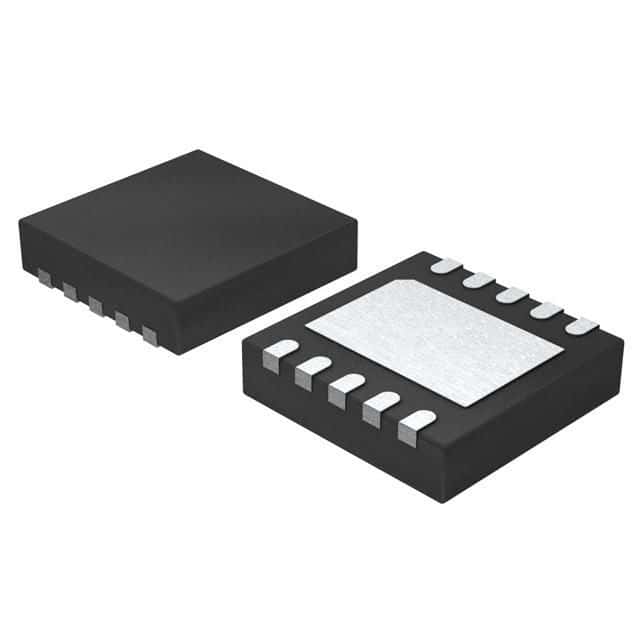

Product Images
