Analog Devices
LTC2606CDD-1#TRPBF
16-Bit Single Channel DAC, 16b Resolution, 10us Settling Time, I2C/Series Interface, DFN Package
The LTC2606CDD-1#TRPBF is a 16-bit single channel digital-to-analog converter (DAC) with a resolution of 16 bits and a settling time of 10us. It operates over a supply voltage range of 2.7V to 5.5V and is available in a DFN package. The device is RoHS compliant and suitable for surface mount applications, with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2606CDD-1#TRPBF technical specifications.
General
| Package/Case | DFN |
| Integral Nonlinearity (INL) | 64LSB |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Output Type | Voltage |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Settling Time | 10us |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2606CDD-1#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC2606CDD-1#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

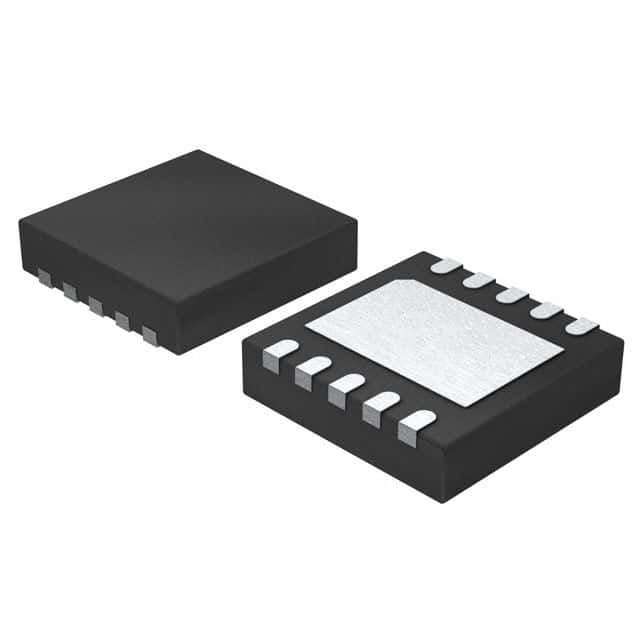

Product Images
