The LTC2611CDD-1#PBF is a dual 14-bit digital-to-analog converter (DAC) from Analog Devices. It features a DFN package and is suitable for surface mount applications. The device operates over a temperature range of 0°C to 70°C and is compliant with RoHS regulations. The LTC2611CDD-1#PBF has a maximum power dissipation of 1.88mW and a supply current of 375uA. It is available in a rail/Tube packaging with 121 units per package.
PackageDFN
Current375uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2611CDD-1#PBF technical specifications.
General
| Package/Case | DFN |
| Input Type | SERIAL |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1.88mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Number of Channels | 2 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Settling Time | 9us |
| Supply Current | 375uA |
| Supply Type | Single |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2611CDD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2611CDD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

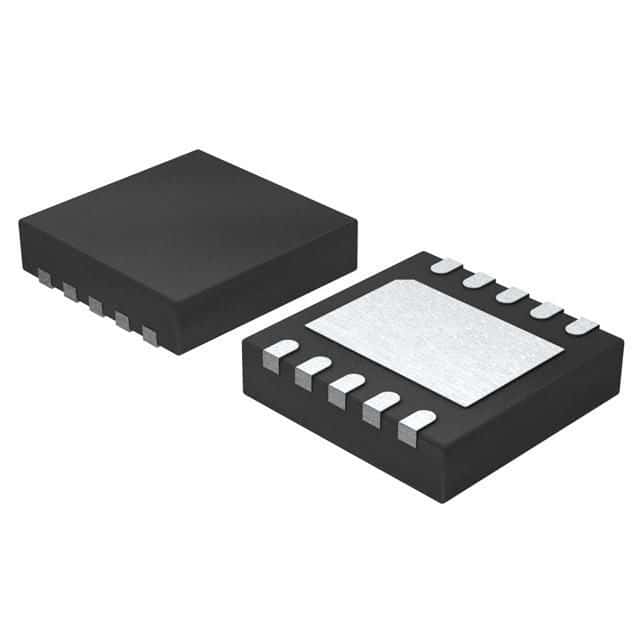

Product Images
