12-bit, single-channel voltage output digital-to-analog converter (DAC) featuring a serial SPI interface. This surface mount component offers 4 LSB integral nonlinearity and a fast 7µs settling time. Operating from a single 2.5V to 5.5V supply, it consumes a maximum of 375µA supply current. The DFN package is lead-free and RoHS compliant, suitable for operation between 0°C and 70°C.
PackageDFN
Current375uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2621CDD#PBF technical specifications.
General
| Package/Case | DFN |
| Input Type | SERIAL |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | Serial, SPI, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1.88mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Output Type | Voltage |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Settling Time | 7us |
| Supply Current | 375uA |
| Supply Type | Single |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2621CDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2621CDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

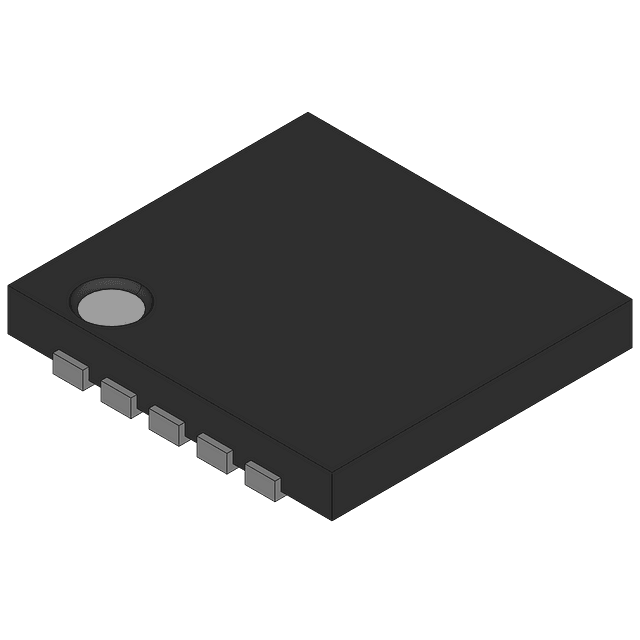

Product Images
