Quad-channel, 12-bit voltage-output digital-to-analog converter (DAC) featuring an SPI serial interface. Offers 12 bits of resolution with integral nonlinearity (INL) of 2.5 LSB. Operates from a single supply voltage range of 2.7V to 5.5V, with a nominal supply current of 700µA. Designed for surface mounting in a QFN package, with a settling time of 4.2µs.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2634IUD-LZ12#PBF technical specifications.
General
| Package/Case | QFN |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | SPI, Serial, 3-WIRE |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 700uA |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Output Type | Voltage |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Settling Time | 4.2us |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2634IUD-LZ12#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2634IUD-LZ12#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

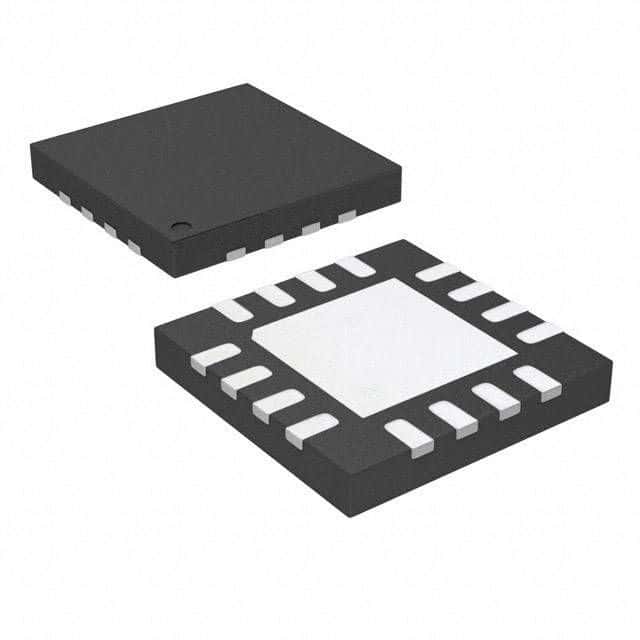

Product Images
