16-bit, single-channel voltage-output digital-to-analog converter (DAC) with 1LSB integral nonlinearity. Features SPI, serial, and 3-wire interface, 1µs settling time, and a single supply voltage range of 2.7V to 5.5V. Surface mountable in a 10-DFN package, operating from 0°C to 70°C. RoHS compliant.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC2642ACDD-16#PBF technical specifications.
General
Package/Case
DFN
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial, 3-WIRE
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
16
Number of Channels
1
Number of Converters
1
Output Type
Voltage
Package Quantity
121
Packaging
Rail/Tube
Resolution
16b
RoHS Compliant
Yes
Settling Time
1us
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2642ACDD-16#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2642ACDD-16#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

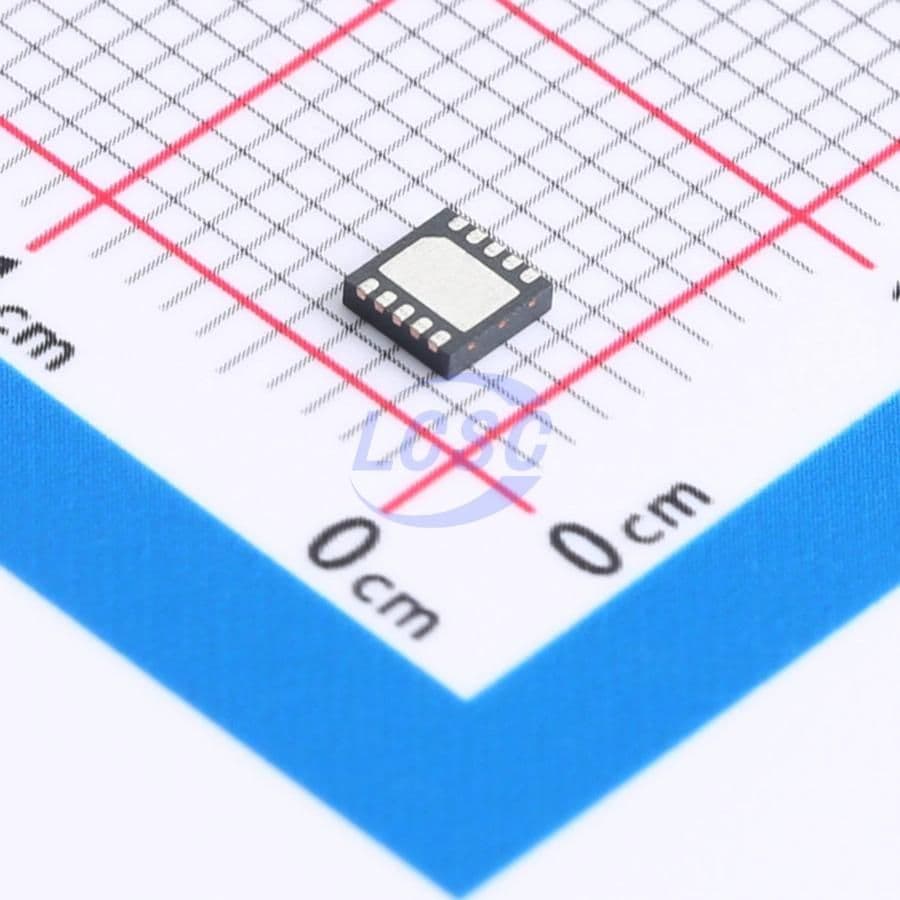

Product Images
