3.3V RS485/422 transceiver, a single-channel interface IC designed for high-speed communication. Features a 20Mbps data rate and operates from a 3V to 3.6V supply voltage. Housed in a compact 3mm x 3mm x 0.75mm DFN package with SMD/SMT termination. Suitable for applications requiring robust serial communication up to 125°C.
PackageDFN
Current1mA
Quick Jump:
Technical Specifications
Analog Devices LTC2854HDD#PBF technical specifications.
General
| Package/Case | DFN |
| Data Rate | 20Mbps |
| Height | 0.75mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Termination | SMD/SMT |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2854HDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2854HDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

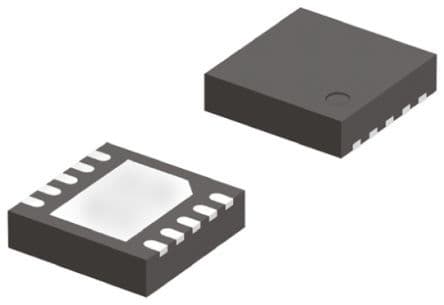

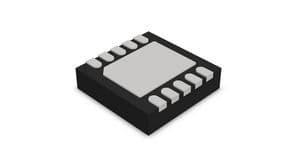

Product Images
