Full-duplex RS-485 transceiver IC featuring one driver and one receiver. Operating across a -40°C to 85°C temperature range, this component offers 25mV receiver hysteresis and a low 900µA supply current. The DFN package ensures compact integration, with lead-free and RoHS compliant construction.
PackageDFN
Current900uA
Quick Jump:
Technical Specifications
Analog Devices LTC2863IDD-1#PBF technical specifications.
General
| Package/Case | DFN |
| Interface | RS-422 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Receiver Hysteresis | 25mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 900uA |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2863IDD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2863IDD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

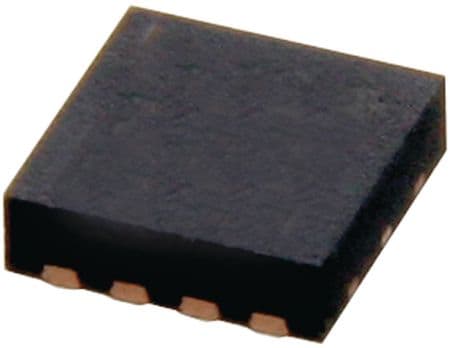

Product Images
