ANALOG DEVICES

LTC2942IDCB-1#TRMPBF

Datasheet

1-Cell Battery Monitor IC, 1A Output Current, 2.7V to 5.5V Supply Voltage

Analog Devices

LTC2942IDCB-1#TRMPBF

Name: LTC2942IDCB-1#TRMPBF Analog Devices
Brand: Analog Devices
SKU: LTC2942IDCB-1#TRMPBF

1-Cell Battery Monitor IC, 1A Output Current, 2.7V to 5.5V Supply Voltage

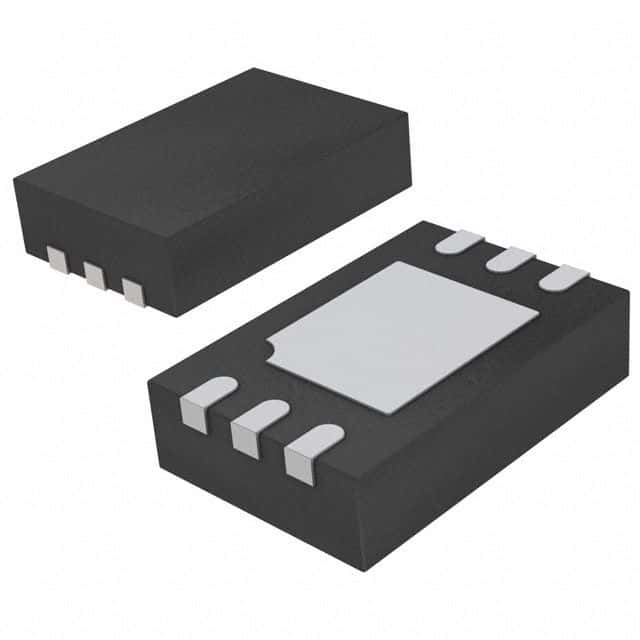

The LTC2942IDCB-1#TRMPBF is a 1-cell battery monitor IC from Analog Devices, packaged in a lead-free DFN package. It operates over a temperature range of -40°C to 85°C and is RoHS compliant. The device has a maximum supply voltage of 5.5V and a minimum supply voltage of 2.7V, making it suitable for a wide range of applications. It is available in a tape and reel packaging format with a package quantity of 1.

PackageDFN

Quick Jump:

Technical Specifications

Analog Devices LTC2942IDCB-1#TRMPBF technical specifications.

General

Package/Case	DFN
Lead Free	Lead Free
Max Input Voltage	5.5V
Min Input Voltage	2.7V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Number of Cells	1
Output Current	1A
Package Quantity	1
Packaging	Tape and Reel
RoHS Compliant	Yes
