Push Button Controller IC, DFN package, featuring a wide input voltage range of 2.7V to 26.4V. This component operates with a low supply current of 6µA and supports a maximum output voltage of 10V. Designed for surface mount termination, it offers an input capacitance of 1.5nF and operates within a temperature range of 0°C to 70°C. Packaged on tape and reel, this RoHS compliant component is lead-free.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC2950CDDB-1#TRMPBF technical specifications.
General
| Package/Case | DFN |
| Input Capacitance | 1.5nF |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 26.4V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Voltage | 10V |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 2.7V |
| Operating Supply Current | 6uA |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2950CDDB-1#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC2950CDDB-1#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

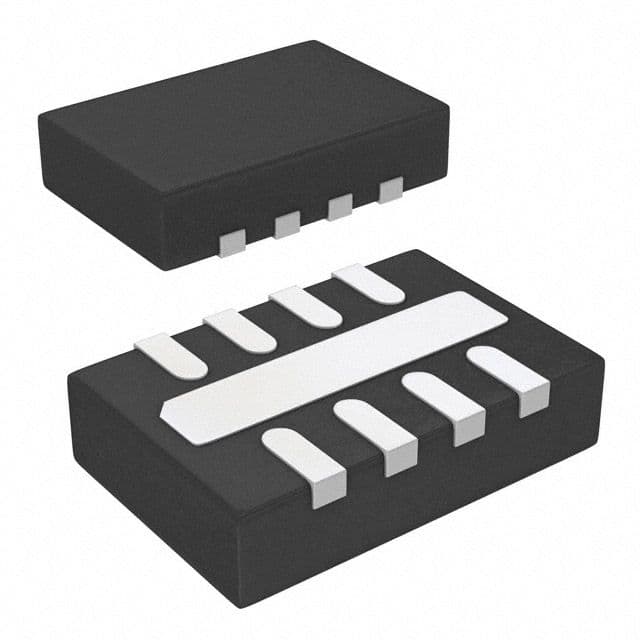

Product Images
