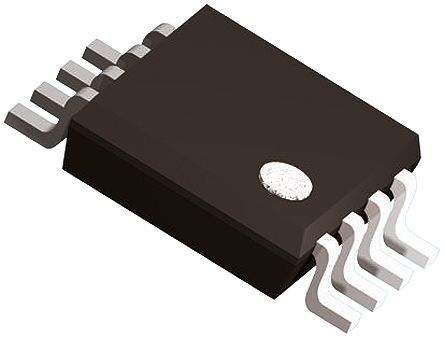

TSOT-23-8 packaged push button controller for power management. Features a wide operating voltage range from 2.7V to 26.4V with a maximum input voltage of 26.4V. Offers low operating supply current of 6µA and operates within a temperature range of -40°C to 85°C. Input capacitance is 1.5nF, and the component is RoHS compliant with SMD/SMT termination.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices LTC2950ITS8-2#TRMPBF technical specifications.
General
Package/Case
TSOT
Input Capacitance
1.5nF
Length
2.9mm
Max Input Voltage
26.4V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
10V
Max Supply Voltage
26.4V
Min Supply Voltage
2.7V
Operating Supply Current
6uA
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2950ITS8-2#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC2950ITS8-2#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
