Power management supervisory circuit with active-high and active-low reset functionality. Features a wide input voltage range from 1.6V to 36V and a low nominal supply current of 1.2µA. Includes a precise 800mV threshold voltage. Packaged in a DFN format, this component is lead-free and RoHS compliant, operating within a temperature range of 0°C to 70°C.

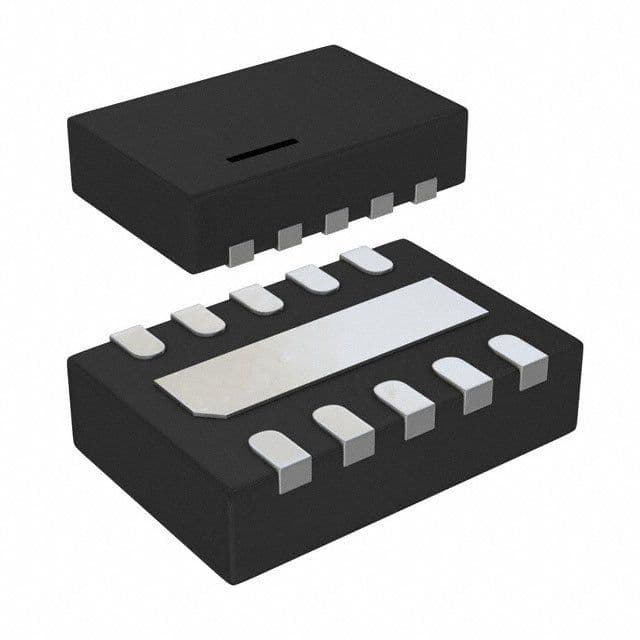

PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC2955CDDB-2#TRMPBF technical specifications.
General
Package/Case
DFN
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Min Supply Voltage
1.6V
Nominal Supply Current
1.2uA
Operating Supply Current
1.2uA
Package Quantity
500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
800mV
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC2955CDDB-2#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC2955CDDB-2#TRMPBF to view detailed technical specifications.
