The LTC2970CUFD-1#PBF is a QFN-packaged power supervisory IC with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It operates within a supply voltage range of 4.5V to 5.75V and draws an operating supply current of 3.7mA. The device is available in a quantity of 73 per package, packaged in rail/Tube packaging. The LTC2970CUFD-1#PBF is not radiation hardened and is compliant with RoHS regulations.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC2970CUFD-1#PBF technical specifications.
General
| Package/Case | QFN |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.75V |
| Min Supply Voltage | 4.5V |
| Operating Supply Current | 3.7mA |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC2970CUFD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC2970CUFD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

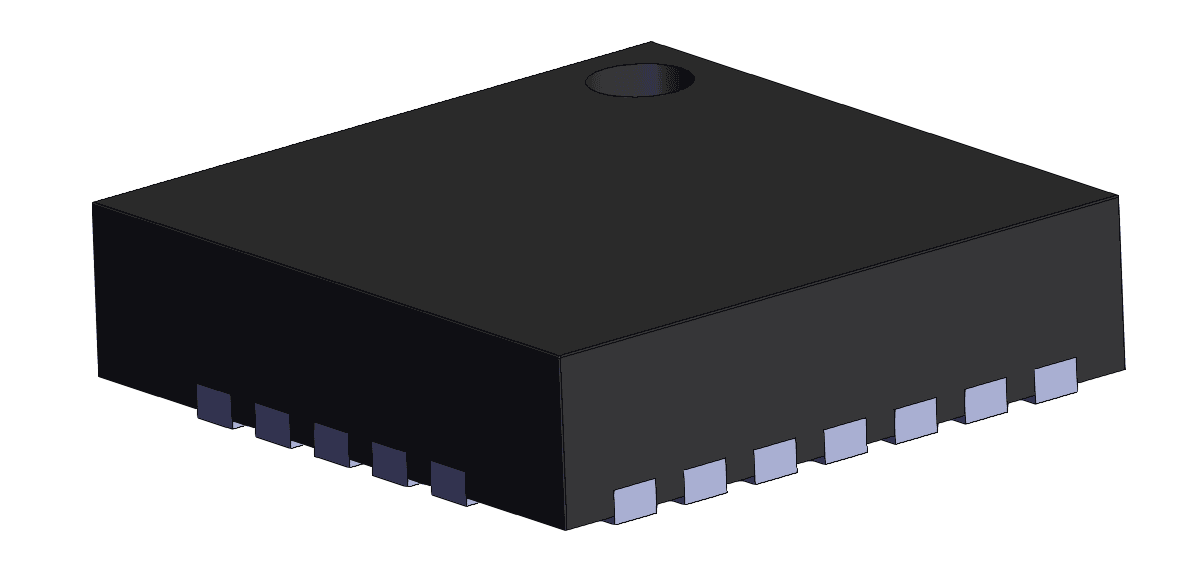

Product Images
