Adjustable 1.5A Buck-Boost DC/DC Controller and Regulator, featuring a synchronous rectifier and positive output configuration. Operates efficiently up to 95% with a wide input voltage range of 2.5V to 15V and an adjustable output voltage from 2.5V to 15V. This surface mount component is housed in a DFN package, suitable for operation across a broad temperature range of -40°C to 125°C. Packaged in tape and reel for high-volume applications.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3111EDE#TRPBF technical specifications.
General
| Package/Case | DFN |
| Efficiency | 95% |
| Max Input Voltage | 15V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 15V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 2.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3111EDE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3111EDE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

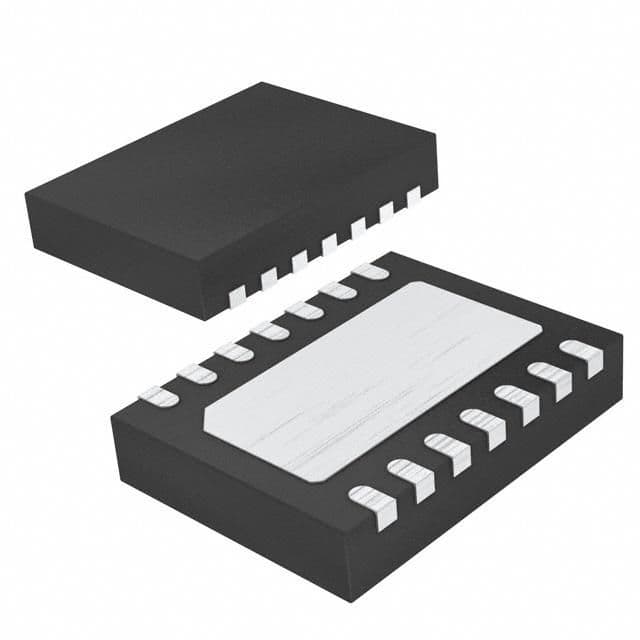

Product Images
