Adjustable 3A synchronous buck-boost DC/DC controller with 96% efficiency. Features a 1.8V minimum input voltage and a 5.5V output voltage. Operates across a wide temperature range from -40°C to 125°C. Single output, DFN package, RoHS compliant.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3113EDHD#PBF technical specifications.
General
| Package/Case | DFN |
| Efficiency | 96% |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3113EDHD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3113EDHD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

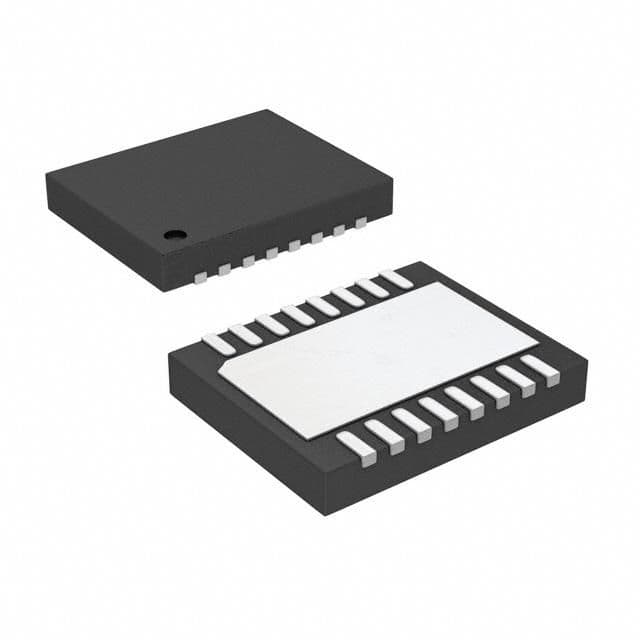

Product Images
