Synchronous buck-boost DC-DC converter in a TSSOP package. Features adjustable positive output voltage from 2.7V to 40V with 1A output current. Operates from 2.2V to 40V input voltage, with a maximum operating temperature of 125°C. Surface mountable and RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3114EFE-1#PBF technical specifications.
General
| Package/Case | TSSOP |
| Max Input Voltage | 40V |
| Min Input Voltage | 2.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 40V |
| Min Output Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 2.7V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3114EFE-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3114EFE-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

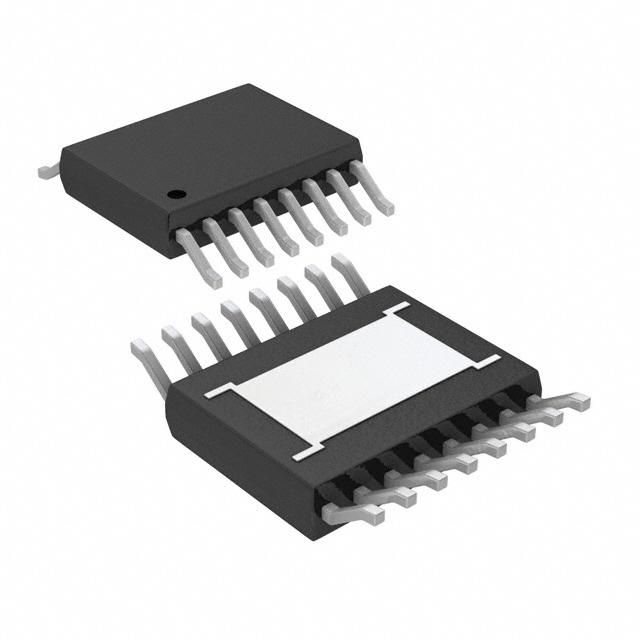

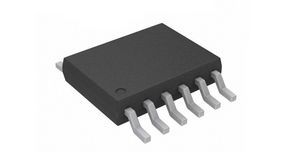

Product Images
