Synchronous buck-boost regulator with adjustable output voltage from 2.7V to 40V. Features a wide input voltage range of 2.2V to 40V and a maximum output current of 2A. Operates efficiently across a temperature range of -40°C to 125°C. This surface-mount component offers a single positive output and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3115EDHD-2#PBF technical specifications.
General
| Max Input Voltage | 40V |
| Min Input Voltage | 2.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 40V |
| Min Output Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 2.7V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3115EDHD-2#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3115EDHD-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

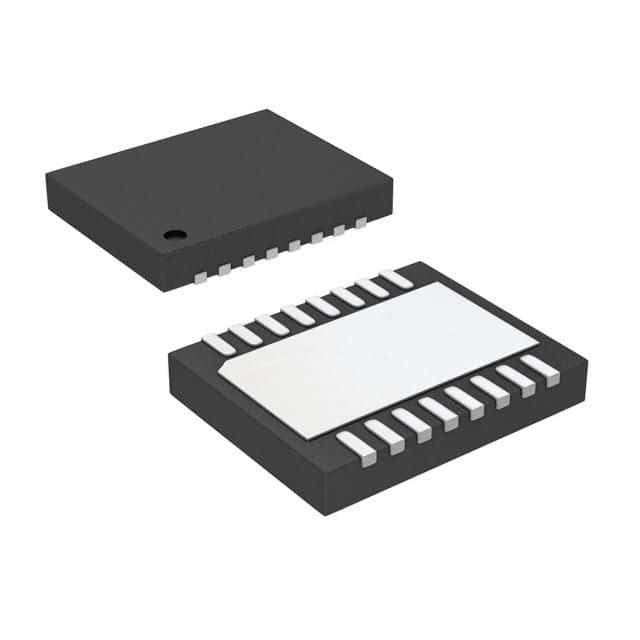

Product Images
