Adjustable 2A Buck-Boost DC/DC Controller and Regulator IC in a 20-pin TSSOP package. Features a wide input voltage range from 2.7V to 40V and an adjustable output voltage up to 40V. Operates efficiently across a temperature range of -40°C to 125°C. This RoHS compliant component offers a single output and is designed for reliable power management applications.
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3115EFE-1#PBF technical specifications.
General
| Package/Case | TSSOP |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 40V |
| Min Output Voltage | 2.7V |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3115EFE-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3115EFE-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

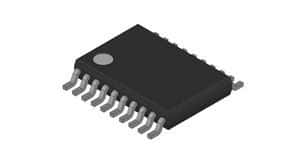

Product Images
