Adjustable 2A buck-boost DC/DC controller with 95% efficiency, capable of handling input voltages from 2.7V to 40V and delivering adjustable output voltages up to 40V. This single-output integrated circuit features a DFN package and operates across a wide temperature range of -40°C to 125°C. Designed for robust power management, it offers a maximum output current of 2A.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3115IDHD-1#PBF technical specifications.
General
| Package/Case | DFN |
| Efficiency | 95% |
| Max Input Voltage | 40V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 40V |
| Min Output Voltage | 2.7V |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Buck-Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3115IDHD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3115IDHD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

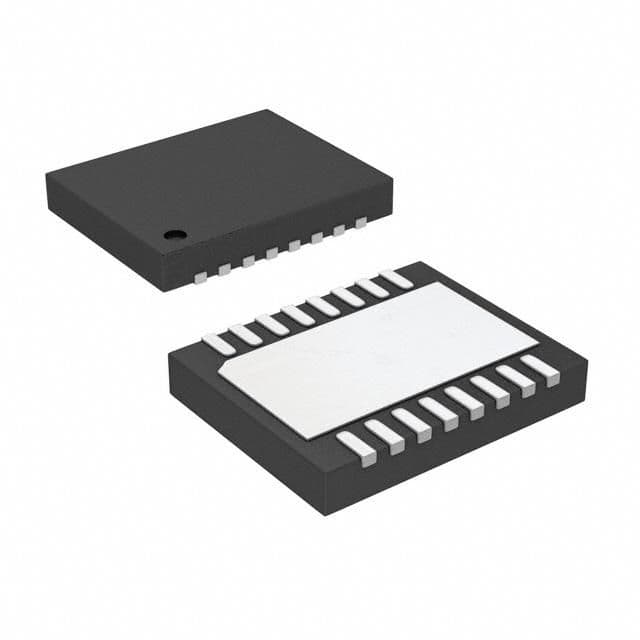

Product Images
