Analog Devices
LTC3129EUD#PBF
Buck-Boost DC/DC Controller, Adj Output, 1.92V-15V In, 1.4V-15.75V Out, 200mA
Adjustable positive output buck-boost DC/DC controller with 200mA output current. Features a 1.92V to 15V input voltage range and an adjustable output voltage from 1.4V to 15.75V. Operates across a -40°C to 125°C temperature range. Includes a synchronous rectifier and is housed in a QFN package.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3129EUD#PBF technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Max Input Voltage
15V
Min Input Voltage
1.92V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
15.75V
Min Output Voltage
1.4V
Number of Outputs
1
Output Configuration
Positive
Output Current
200mA
Output Type
Adjustable
Output Voltage
1.4V
Package Quantity
121
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3129EUD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3129EUD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

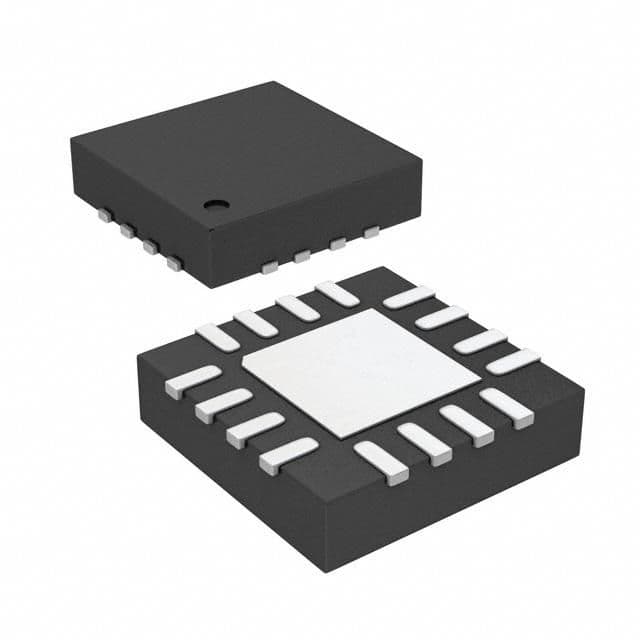

Product Images
