Programmable positive buck-boost DC/DC controller and regulator with 200mA output current. Features a 1.92V to 15V input voltage range and a 2.5V to 15.5V output voltage range. Operates from -40°C to 125°C with a synchronous rectifier for high efficiency. Lead-free and RoHS compliant.
Quick Jump:
Technical Specifications
Analog Devices LTC3129IUD-1#PBF technical specifications.
General
Lead Free
Lead Free
Max Input Voltage
15V
Min Input Voltage
1.92V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
15.5V
Min Output Voltage
2.5V
Number of Outputs
1
Output Configuration
Positive
Output Current
200mA
Output Voltage
1.4V
Package Quantity
121
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3129IUD-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3129IUD-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

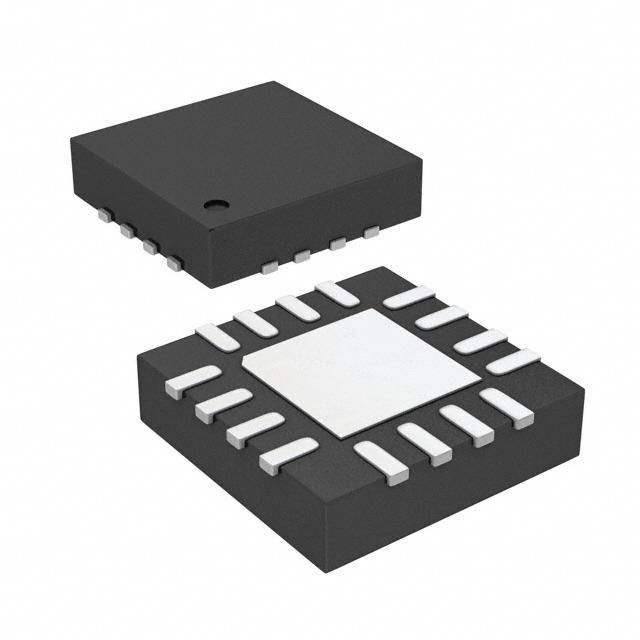

Product Images
