Adjustable positive buck-boost DC/DC controller IC with 200mA output current. Features a 1.92V to 15V input voltage range and an adjustable output voltage from 1.4V to 15.75V. Operates across a -40°C to 125°C temperature range and utilizes a synchronous rectifier for enhanced efficiency. Packaged in a 16-pin QFN, this RoHS compliant component is supplied in rail/tube packaging.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3129IUD#PBF technical specifications.
General
Package/Case
QFN
Max Input Voltage
15V
Min Input Voltage
1.92V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
15.75V
Min Output Voltage
1.4V
Number of Outputs
1
Output Configuration
Positive
Output Current
200mA
Output Type
Adjustable
Output Voltage
1.4V
Package Quantity
121
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3129IUD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3129IUD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

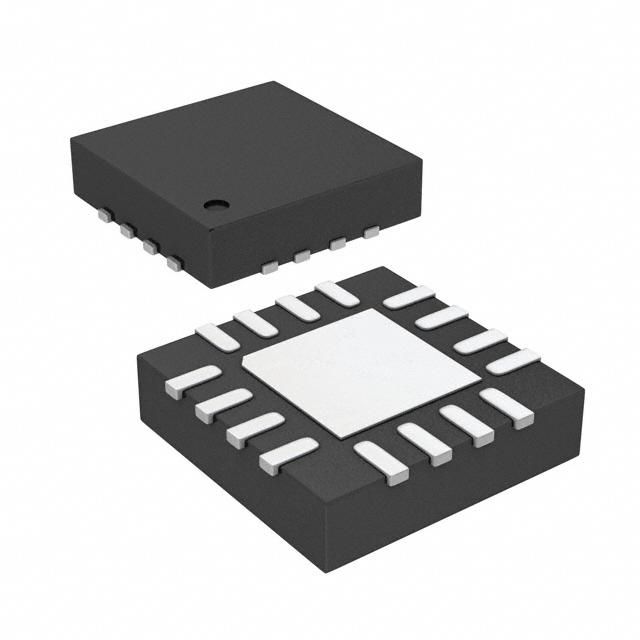

Product Images
