The LTC3218EDDB#TRPBF is a charge pump LED driver from Analog Devices, operating at a frequency of 1MHz. It can handle input voltages between 2.9V and 4.5V. This device is packaged in a DFN EP package and is RoHS compliant. The operating temperature range is -40°C to 85°C.
Frequency1MHz
PackageDFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC3218EDDB#TRPBF technical specifications.
General
| Package/Case | DFN EP |
| Frequency | 1MHz |
| Min Input Voltage | 2.9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 4.5V |
| Min Supply Voltage | 2.9V |
| Number of Outputs | 1 |
| Number of Segments | 1 |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 5.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Topology | Charge Pump |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3218EDDB#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3218EDDB#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

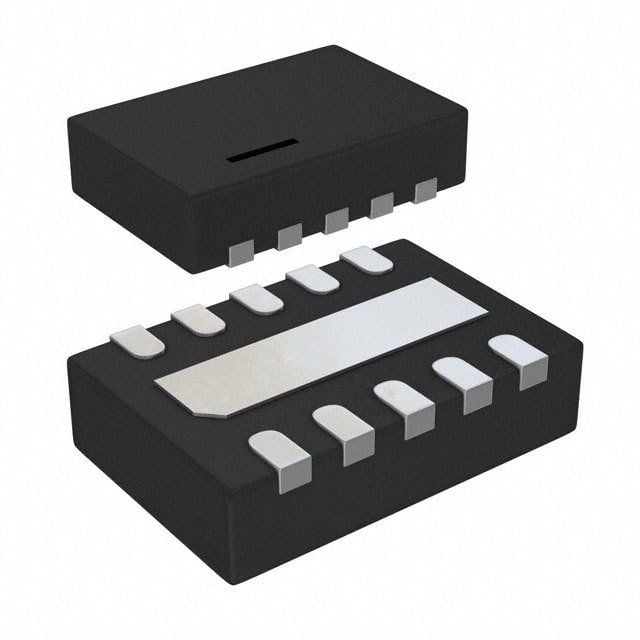

Product Images
