Technical Specifications
Analog Devices LTC3221EDC-3.3#TRMPBF technical specifications.
General
Package/Case
DFN EP
Max Input Voltage
4.4V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
60mA
Min Output Voltage
3.3V
Max Supply Voltage
4.4V
Min Supply Voltage
1.8V
Number of Outputs
1
Operating Supply Current
8uA
Output Configuration
Positive
Output Current
60mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Charge Pump
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3221EDC-3.3#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC3221EDC-3.3#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

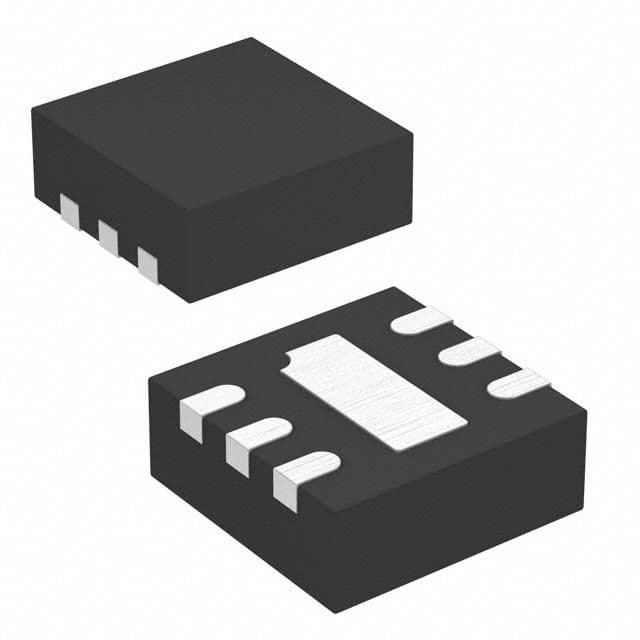

Product Images
