Supercapacitor charger IC featuring a charge pump topology. Delivers up to 150mA output current with a low 20µA operating supply current. Encased in a 3mm DFN EP package, this component operates across a wide temperature range from -40°C to 85°C. It is lead-free and RoHS compliant, supplied in tape and reel packaging.
PackageDFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC3225EDDB-1#TRMPBF technical specifications.
General
| Package/Case | DFN EP |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Current | 20uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Charge Pump |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3225EDDB-1#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC3225EDDB-1#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

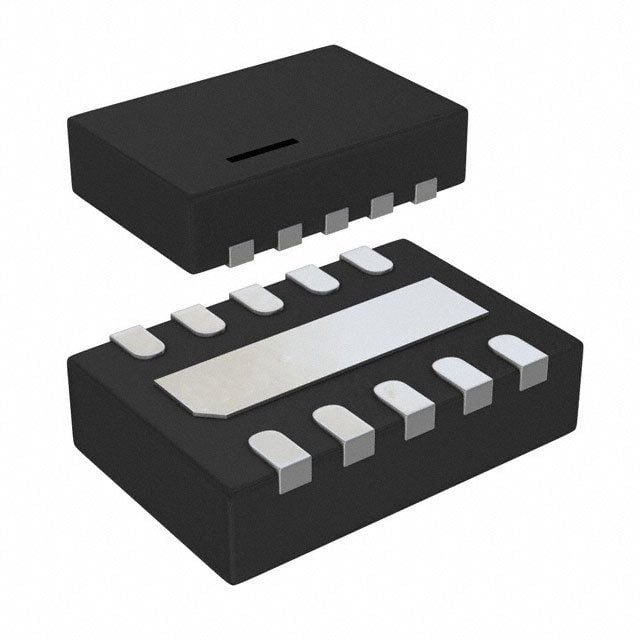

Product Images
