Adjustable DC-DC Buck-Boost Regulator, 2.7V to 38V input, 2.5V to 5V output, delivering up to 250mA output current. Features a low 18µA operating supply current and a single output. Packaged in a 12-pin DFN, this component operates from -40°C to 125°C and is RoHS compliant.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3245IDE#PBF technical specifications.
General
Package/Case
DFN
Lead Free
Lead Free
Max Input Voltage
38V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
5V
Min Output Voltage
2.5V
Max Supply Voltage
38V
Min Supply Voltage
2.7V
Number of Outputs
1
Operating Supply Current
18uA
Output Current
250mA
Output Type
Fixed, Adjustable
Output Voltage
5V
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3245IDE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3245IDE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

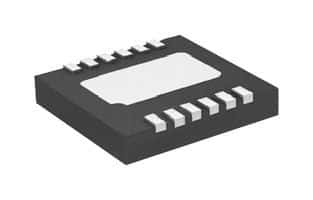

Product Images
