Technical Specifications
Analog Devices LTC3250ES6-1.5#TRPBF technical specifications.
General
Package/Case
SOT-23-6
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
3.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Supply Voltage
5.5V
Min Supply Voltage
3.1V
Number of Outputs
1
Operating Supply Current
35uA
Output Current
250mA
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3250ES6-1.5#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3250ES6-1.5#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

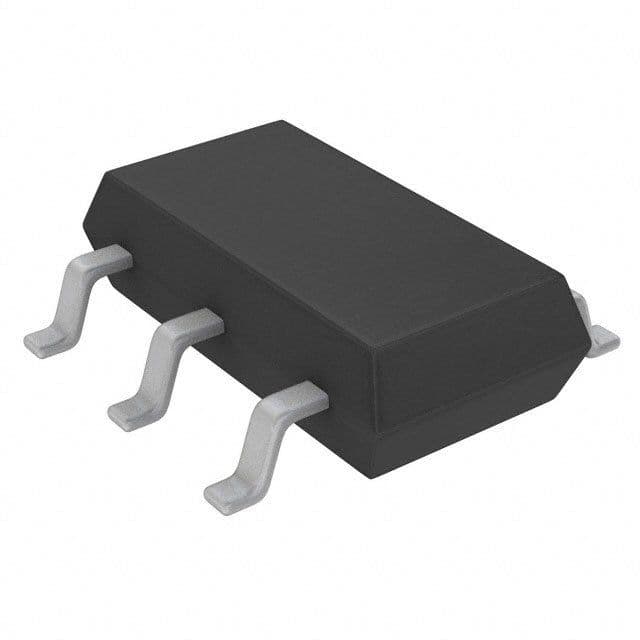

Product Images
