Analog Devices
LTC3255EDD#PBF
LINEAR TECHNOLOGY LTC3255EDD#PBF IC, STEP DWN CHARGE PUMP, 500KHZ, DFN-10
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3255EDD#PBF technical specifications.
General
Max Input Voltage
48V
Min Input Voltage
4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Voltage
12.5V
Min Output Voltage
2.4V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
50mA
Output Type
Adjustable
Package Quantity
121
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Charge Pump
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3255EDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3255EDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

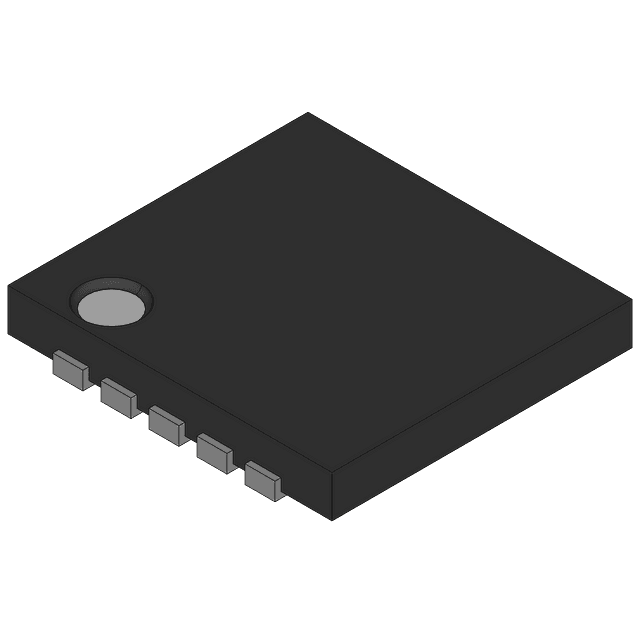

Product Images
