Synchronous buck-boost DC-DC controller with adjustable output voltage from 800mV to 5V and a maximum output current of 2.5A. Features a wide input voltage range of 2.625V to 5.5V, achieving up to 95% efficiency. This single-channel, positive output regulator is housed in a 16-pin TSSOP package, suitable for surface mounting. Operating temperature range spans from -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3412EFE#PBF technical specifications.
General
| Package/Case | TSSOP |
| Efficiency | 95% |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.625V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2.5A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3412EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3412EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

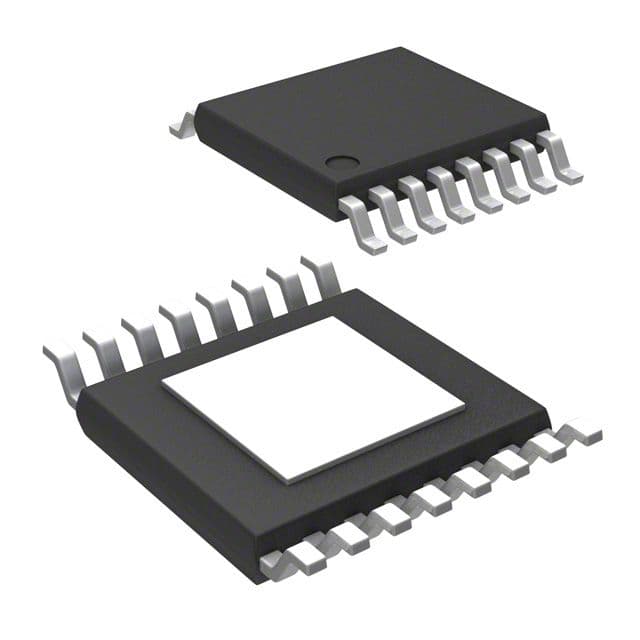

Product Images
