Synchronous buck converter IC with adjustable output voltage up to 5.5V and 3A output current. Achieves 90% efficiency, operating from a minimum input voltage of 2.25V. Features a wide operating temperature range of -40°C to 85°C and is RoHS compliant. Packaged in a 16-pin TSSOP for tape and reel distribution.
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3413EFE#TRPBF technical specifications.
General
| Package/Case | SOP |
| Efficiency | 90% |
| Lead Free | Lead Free |
| Min Input Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3413EFE#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3413EFE#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

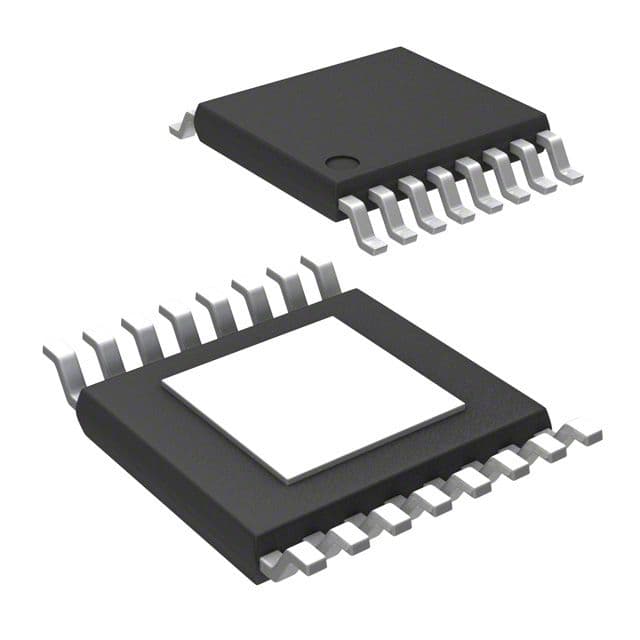

Product Images
