Analog Devices
LTC3414EFE
LTC3414 - 4A, 4MHz, Monolithic Synchronous Step-Down Regulator; Package: TSSOP; Pins: 20; Temperature Range: -40°C to 85°C
PackageSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3414EFE technical specifications.
General
| Package/Case | SOP |
| Efficiency | 95% |
| Lead Free | Contains Lead |
| Min Input Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 4A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices LTC3414EFE Datasheet
Download the complete datasheet for Analog Devices LTC3414EFE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

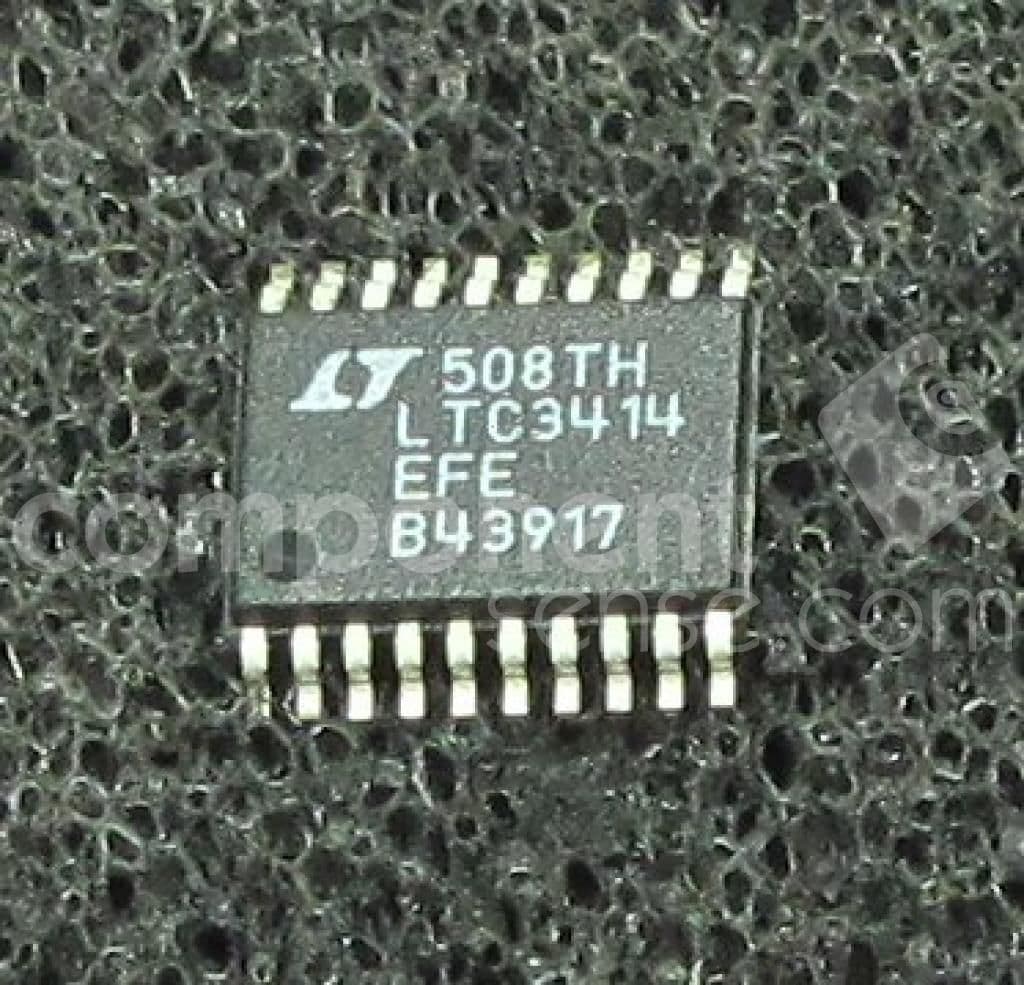

Product Images
