Synchronous step-down DC/DC controller with 4A maximum output current. Features adjustable output voltage from 800mV to 5V, with a maximum output voltage of 5V. Operates with input voltages between 2.25V and 5.5V, achieving up to 95% efficiency. Housed in a 20-pin TSSOP package, this positive output IC is RoHS compliant and suitable for operation from -40°C to 85°C.
PackageTSSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3414EFE#PBF technical specifications.
General
Package/Case
TSSOP
Efficiency
95%
Height
1.05mm
Lead Free
Lead Free
Length
6.6mm
Max Input Voltage
5.5V
Min Input Voltage
2.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
5V
Min Output Voltage
800mV
Number of Outputs
1
Output Configuration
Positive
Output Current
4A
Output Type
Adjustable
Output Voltage
5V
Package Quantity
74
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3414EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3414EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

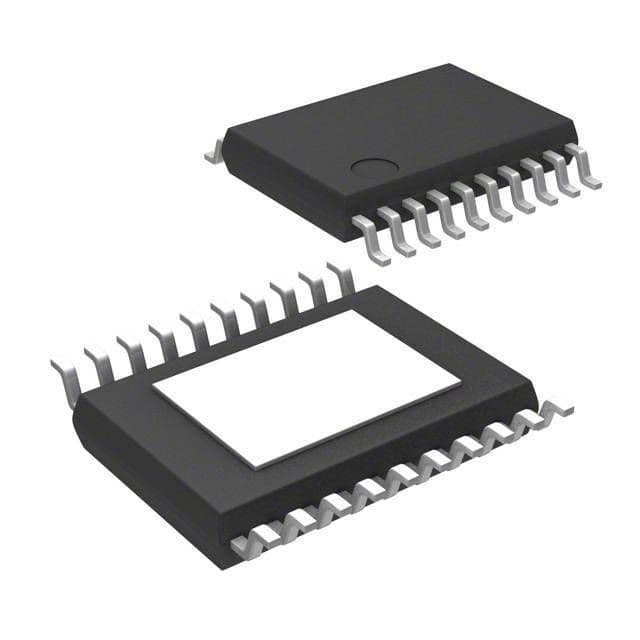

Product Images
