Dual output adjustable DC/DC buck controller, featuring 1.5A and 1A maximum output currents. Operates from a 2.25V to 5.5V input range, delivering up to 5V output voltage with a minimum of 800mV. Integrated synchronous rectification enhances efficiency. Packaged in a compact 16-pin DFN with dimensions of 5mm x 3mm x 0.7mm, suitable for demanding power management applications.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3417AEDHC-2#PBF technical specifications.
General
| Package/Case | DFN |
| Current - Output 1 | 1.5A |
| Current - Output 2 | 1A |
| Height | 0.7mm |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Number of Outputs | 2 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 5V |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3417AEDHC-2#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3417AEDHC-2#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

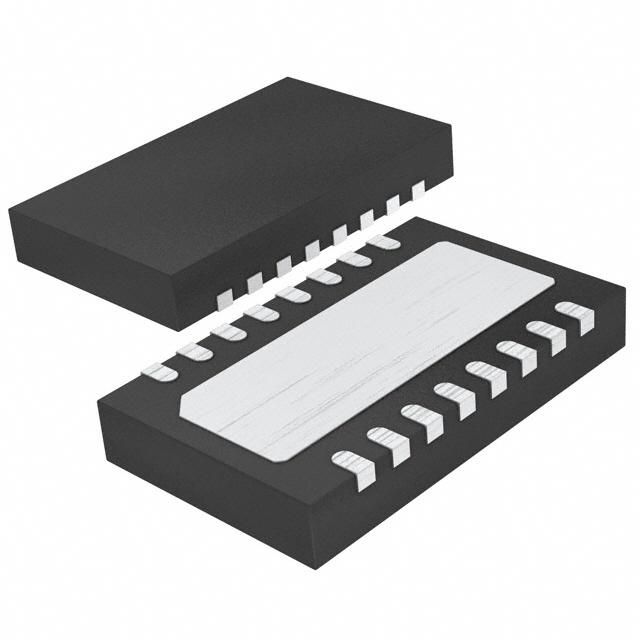

Product Images
