Dual synchronous buck converter IC, adjustable output voltage from 800mV to 5V. Features 1.4A output current capability on one channel and 800mA on the second, with up to 95% efficiency. Operates from a 2.25V to 5.5V input voltage range and supports surface mount installation in a 20-pin TSSOP package. This RoHS compliant component is designed for power management applications.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTC3417EFE#PBF technical specifications.
General
| Package/Case | TSSOP |
| Current - Output 1 | 1.4A |
| Current - Output 2 | 800mA |
| Efficiency | 95% |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.4A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Configuration | Positive |
| Output Current | 1.4A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 5V |
| Width | 4.48mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3417EFE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3417EFE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

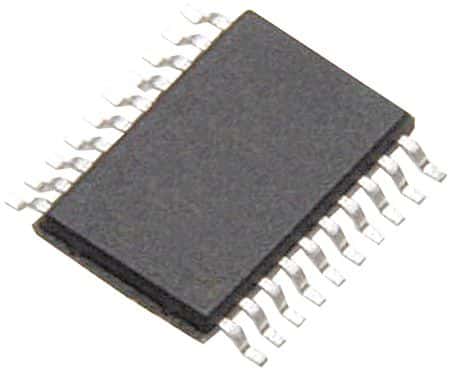

Product Images
