Adjustable synchronous buck DC/DC controller with 8A maximum output current. Features a 2.25V to 5.5V input voltage range and an adjustable output voltage from 800mV to 5V. Achieves up to 95% efficiency and operates within a -40°C to 85°C temperature range. Packaged in a 7mm x 5mm x 0.7mm QFN package.
PackageQFN
Quick Jump:
Technical Specifications
Analog Devices LTC3418EUHF#PBF technical specifications.
General
| Package/Case | QFN |
| Efficiency | 95% |
| Height | 0.7mm |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Number of Outputs | 1 |
| Output Current | 8A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 52 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3418EUHF#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3418EUHF#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

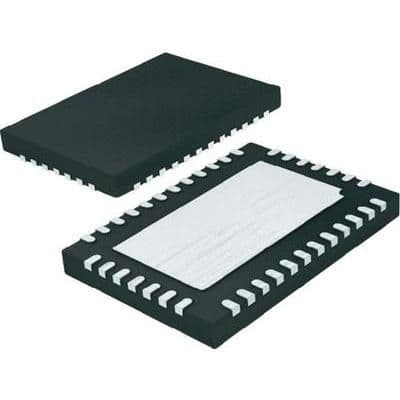

Product Images
