Dual synchronous step-down DC/DC converter with 600mA output current per channel. Features adjustable output voltage up to 5.5V and a DFN package. Operates from -40°C to 125°C, is lead-free, and RoHS compliant. Supplied on tape and reel in a package quantity of 2500.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3419EDD#TRPBF technical specifications.
General
| Package/Case | DFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 1 |
| Number of Outputs | 2 |
| Output Current | 600mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3419EDD#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3419EDD#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

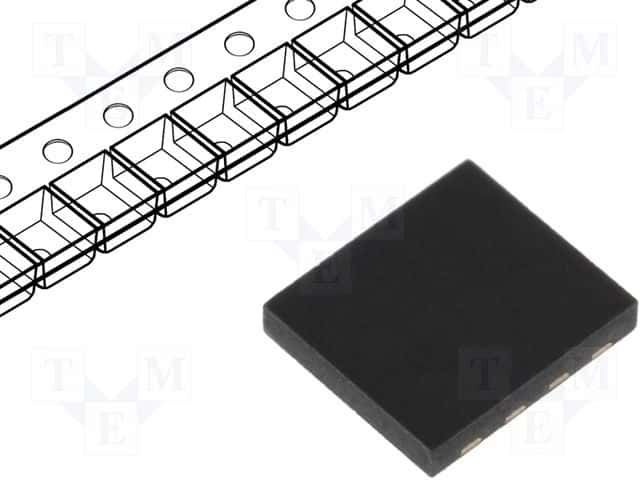

Product Images
