Adjustable DC/DC Buck-Boost Controller IC with 96% efficiency. Features a 2.5V to 5.5V input voltage range and a 2.5V to 5.5V adjustable output voltage. Delivers up to 600mA output current. Packaged in a 10-MSOP with a height of 0.86mm, length of 3mm, and width of 3mm. Operates from -40°C to 85°C and is RoHS compliant.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3440EMS#PBF technical specifications.
General
| Package/Case | MSOP |
| Efficiency | 96% |
| Height | 0.86mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Output Current | 600mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3440EMS#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3440EMS#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

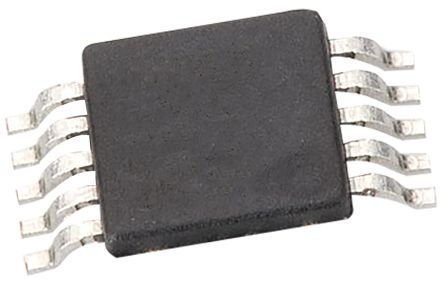

Product Images
