Analog Devices
LTC3528BEDDB-2#TRMPBF
Boost DC/DC Controller, Adjustable Output 5.25V, 1A, Lead Free, DFN
The LTC3528BEDDB-2#TRMPBF is a boost DC/DC controller from Analog Devices with an adjustable output voltage of 5.25V and a maximum output current of 1A. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device features a synchronous rectifier and a packaging option of tape and reel. It is designed for use in lead-free applications and has an efficiency of 94%.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3528BEDDB-2#TRMPBF technical specifications.
General
| Package/Case | DFN |
| Efficiency | 94% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 880mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5.25V |
| Min Output Voltage | 1.6V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5.25V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3528BEDDB-2#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC3528BEDDB-2#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

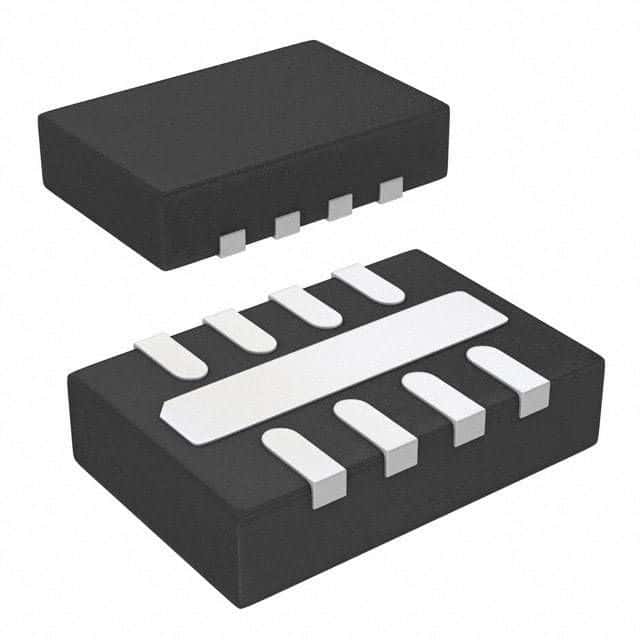

Product Images
