Adjustable positive output boost DC/DC controller and regulator, featuring synchronous rectification for up to 94% efficiency. Operates from 880mV to 5.25V input, providing an adjustable output voltage up to 5.25V with a 1A maximum output current. Housed in an 8-pin DFN package, this lead-free, RoHS-compliant component is designed for operation between -40°C and 125°C.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3528EDDB#TRMPBF technical specifications.
General
| Package/Case | DFN |
| Efficiency | 94% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.25V |
| Min Input Voltage | 880mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5.25V |
| Min Output Voltage | 1.6V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5.25V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3528EDDB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LTC3528EDDB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

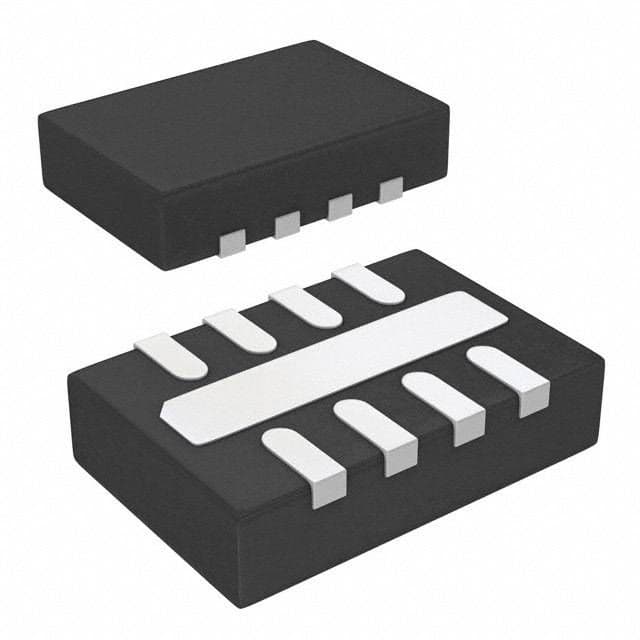

Product Images
