Single output DC-DC converter, featuring synchronous rectification, capable of non-inverting, inverting, step-up, and step-down operation. Adjustable output voltage up to 5.25V with a maximum output current of 600mA. Operates within a wide temperature range of -40°C to 85°C. Packaged in a 10-pin MSOP on tape and reel, this RoHS compliant component is ideal for power management applications.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices LTC3530EMS#TRPBF technical specifications.
General
| Package/Case | MSOP |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 600mA |
| Output Type | Adjustable |
| Output Voltage | 5.25V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3530EMS#TRPBF Datasheet
Download the complete datasheet for Analog Devices LTC3530EMS#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

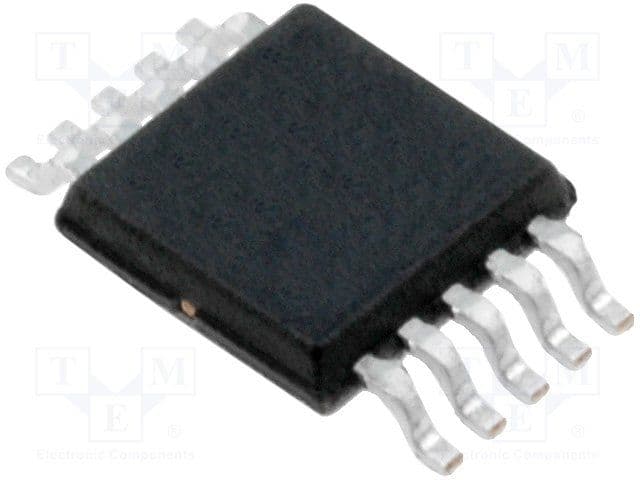

Product Images
