Adjustable DC-DC buck converter with 1.8A output current and 96% efficiency. Features a 4MHz switching frequency, 2.5V to 5.5V input voltage range, and adjustable output voltage from 800mV to 5V. This synchronous rectifier IC is housed in a compact 3mm x 3mm x 0.75mm DFN package. Operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3568EDD#PBF technical specifications.
General
| Package/Case | DFN |
| Efficiency | 96% |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.8A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Number of Outputs | 1 |
| Output Current | 1.8A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3568EDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3568EDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

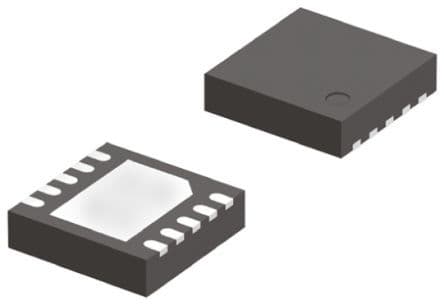

Product Images
