Triple synchronous buck DC/DC controller and regulator featuring adjustable output voltage up to 5.5V and 1.2A output current per channel. Achieves up to 96% efficiency with a minimum input voltage of 2.5V. Operates across a wide temperature range from -40°C to 125°C. Packaged in a 20-pin QFN EP, this RoHS compliant component includes synchronous rectification for enhanced performance.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC3569EUD#PBF technical specifications.
General
Package/Case
QFN EP
Efficiency
96%
Lead Free
Contains Lead
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
3
Output Current
1.2A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
91
Packaging
Rail/Tube
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3569EUD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3569EUD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

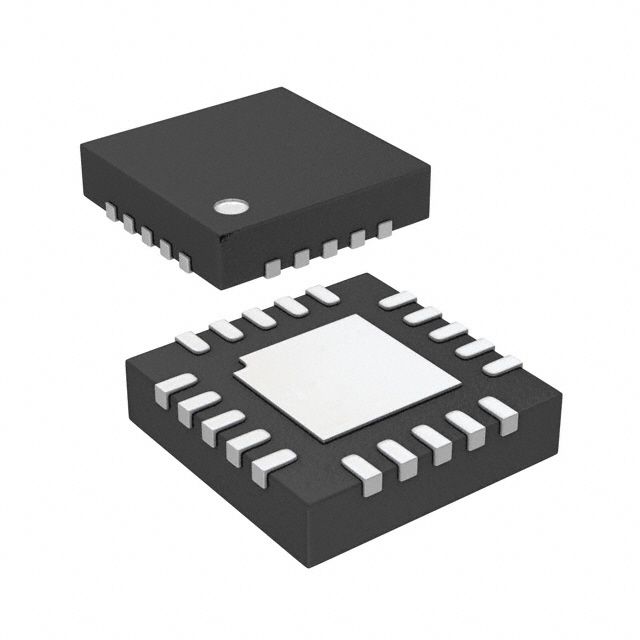

Product Images
