Synchronous step-down DC/DC controller with 1.5A output current and adjustable output voltage up to 14.5V. Achieves up to 96% efficiency, operating from a 4V minimum input voltage. Features a single output and a DFN package, suitable for applications requiring a wide temperature range from -40°C to 125°C. This lead-free, RoHS compliant component is supplied in a 121-piece rail/tube package.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LTC3600EDD#PBF technical specifications.
General
Package/Case
DFN
Efficiency
96%
Lead Free
Lead Free
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
14.5V
Package Quantity
121
Packaging
Rail/Tube
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3600EDD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3600EDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

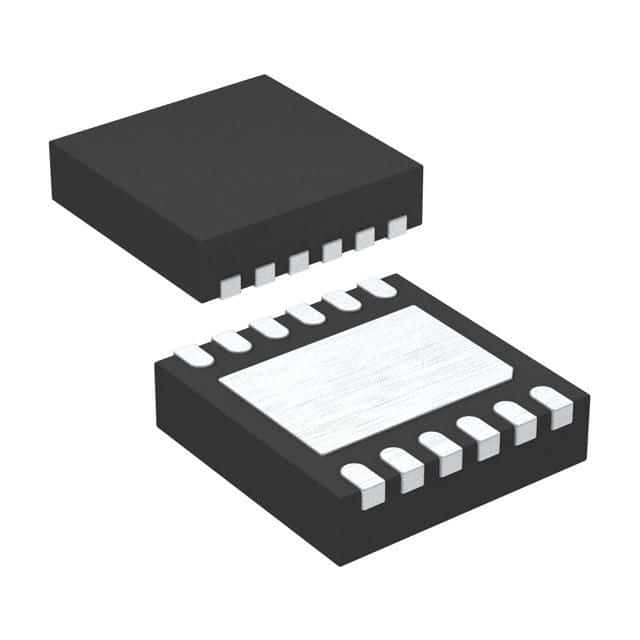

Product Images
