Adjustable synchronous buck DC/DC controller and regulator, delivering up to 1.5A output current. Features a wide input voltage range of 4V to 15V and an adjustable output voltage from 600mV to 13.5V. Achieves up to 95% efficiency and operates across a temperature range of -40°C to 125°C. Packaged in a 16-pin QFN EP with dimensions of 4.04mm x 3mm x 0.86mm. RoHS compliant.
PackageQFN EP
Quick Jump:
Technical Specifications
Analog Devices LTC3601EUD#PBF technical specifications.
General
Package/Case
QFN EP
Efficiency
95%
Height
0.86mm
Length
4.04mm
Max Input Voltage
15V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
13.5V
Min Output Voltage
600mV
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable, Fixed
Output Voltage
14.52V
Package Quantity
121
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3601EUD#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3601EUD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

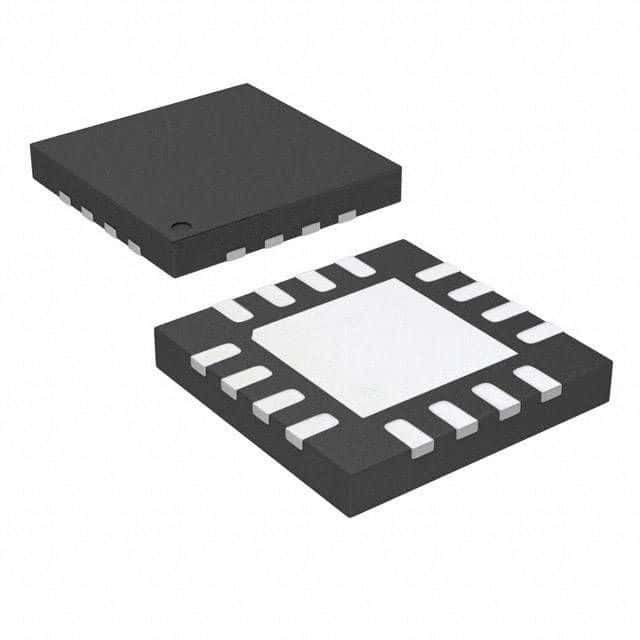

Product Images
