Adjustable synchronous buck DC/DC controller IC with 2.5A output current capability. Features a wide input voltage range from 4.5V to 15V and an adjustable output voltage from 600mV up to 14.5V. Operates efficiently across a temperature range of -40°C to 125°C. Packaged in a 16-MSOP configuration, this RoHS compliant component is designed for reliable power management applications.
Quick Jump:
Technical Specifications
Analog Devices LTC3603EMSE#PBF technical specifications.
General
| Max Input Voltage | 15V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 14.5V |
| Min Output Voltage | 600mV |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Type | Adjustable |
| Output Voltage | 14.85V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LTC3603EMSE#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3603EMSE#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

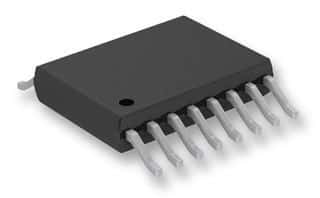

Product Images
